Electrofusion Threaded Saddles

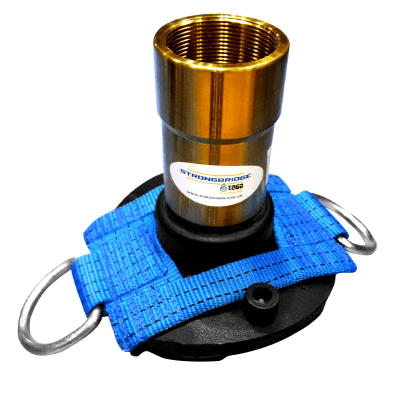

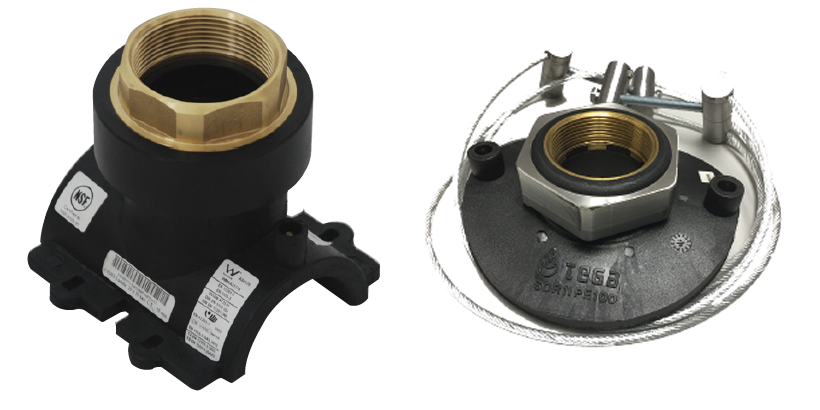

Engineered for durability, built to last – Strongbridge Tega HDPE electrofusion threaded saddles (NPT - Female - threads crafted from lead-free brass) are available in both long and short SDR 11 threaded outlet saddles, made of HDPE PE4710 / PE100 virgin resin, that ensures a leak-free design. Our threaded saddles are dual-rated for water and gas and are suitable for carrying water, fluid, gas, and slurries.

After threaded saddles are secured onto the existing HDPE pipe and connected to a Strongbridge electrofusion processor, the outer barcode (a 24-digit code that contains information about the fitting and the fusion parameter processor to ensure a high-quality fusion) is scanned, an electric current is applied to the integrated electrofusion wire coil which melts the PE4710/100 virgin resin materials and fuses them to the existing pipe.

Once properly cooled, the threaded saddle creates a sealed branch outlet for connecting another pipe or fitting. This method simplifies installation, ensures a reliable connection, and facilitates pipeline expansion or modification.

Before installation, it's crucial to consult manufacturer-certified guidelines for precise instructions tailored to the threaded saddles and fusion equipment. These guidelines outline steps for preparation, alignment, clamping, verification, and fusion procedures, ensuring correct installation and optimal performance.

Engineered for PE3408, PE4710, PE100 HDPE Pipe Systems.

TEGA electrofusion fittings may be fused at ambient temperatures of between 0°C (+32°F) and +45°C (+115°F). If job site conditions are such that the pipe and fitting temperature is below this range, the installer should use a tent and heater to warm the pipe and electrofusion fitting to within the allowable temperature range. Special care should be taken to provide a balanced temperature level of both pipes and fittings before fitment and fusion operation.
