Electrofusion Tapping Tees
Size Range
SDR
11
IPS
1 ¼” x ½” IPS to 10” x 2” IPS
(fusible to SDR 11-SDR 17)
Dual Rated For
Water: 240 PSI at 73° F Natural Gas: 125 PSI at 73° FSustainable maximum operating pressure
SDR
11
DIPS
4” x ½” to
10” x 2” DIPS
(fusible to SDR 11-SDR 17)
Dual Rated For
Water: 240 PSI at 73° F Natural Gas: 125 PSI at 73° FSustainable maximum operating pressure
Details
Engineered for durability, built to last – Strongbridge offers industrial-grade polyethylene (HDPE) electrofusion tapping tees with a wide range of sizes and pressure classes. Our tapping tees are engineered for PE3408, PE4710 & PE100 HDPE pipe systems, offering extreme durability and manufactured using HDPE PE4710/PE100 virgin resin for a leak-free system.
Our heavy-duty tapping tees are fully pressure-rated for superior performance. Tapping tees offer a branch connection to carry water, fluids, gas, and slurries to existing HDPE piping systems without the need for extra fittings or welding.
After our tapping tee is clamped onto the existing HDPE pipe and connected to a Strongbridge electrofusion processor, the outer barcode (a 24-digit code that has information about the fitting and the fusion parameter processor to ensure a high-quality fusion) is scanned, an electric current is applied to the integrated electrofusion wire coil which heats the PE4710/100 virgin resin materials to melt and fuse to the existing pipe.
Once cooled, the tapping tee provides a sealed branch outlet for connecting another pipe or fitting. This method simplifies installation, ensures a reliable connection, and facilitates pipeline expansion or modification.
Technical Notes
Engineered for PE3408, PE4710, PE100 HDPE Pipe Systems.
TEGA electrofusion fittings may be fused at ambient temperatures of between 0°C (+32°F) and +45°C (+115°F). If job site conditions are such that the pipe and fitting temperature is below this range, the installer should use a tent and heater to warm the pipe and electrofusion fitting to within the allowable temperature range. Special care should be taken to provide a balanced temperature level of both pipes and fittings before fitment and fusion operation.
Resin Specifications
Strongbridge fittings are manufactured using a bimodal high-density polyethylene (HDPE) compound, engineered for superior performance. This specialized pellet-form compound incorporates stabilizers and carbon black, ensuring long-term durability, UV resistance, and reliable stability in demanding applications.
| Resin Properties | Resin Specification Data |
|---|---|
| Resin type | Polyethylene |
| Resin sub-type | HDPE |
| Density | 960 kg/m³ |
| Melt flow rate (190° C/5 kg) | 0.25 g/10min |
| Tensile modulus (1 mm/min) | 1100 MPa |
| Tensile stress at yield (50 mm/min) | 25 MPa |
| Tensile strain at break | >600 % |
| Carbon black dispersion | ≥ 3 |
| Oxidation induction time (210° C) | ≥ 20 min |
| Carbon black content | 2.0 - 2.5 % |
| Resistance to slow crack growth (9.2 bar 80° C) | >1000 h |
| Resistance to rapid crack propagation(S4 test, Pc at 0° C, Test pipe 250mm, SDR11) | ≥ 10 bar |
Features
High-density polyethylene PE3408, PE4710, PE100
Your best choice for a leak-free system
High chemical resistance
Impact resistance at low temperatures
Resistant to corrosion and abrasion
Lightweight
Easy installation
Suitable for water, fluids, and slurries
Standards & Certs
Downloads
Specification Sheet
Catalog
Part Numbers & Specs

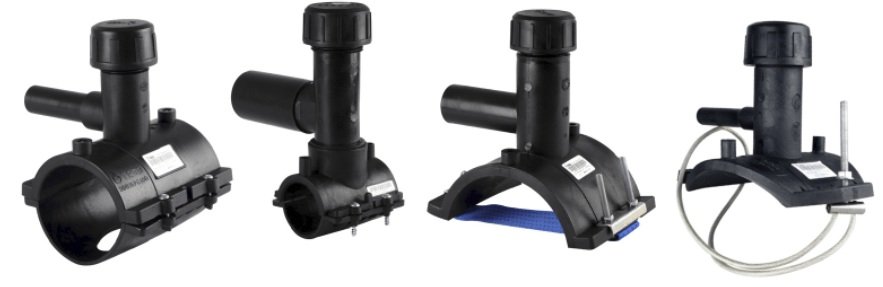

Type A
Type B
Type C
Type D
| Part Number | Size | IPS/DIPS | SDR | Description | Actual Base Size (D/2) | Actual Outlet Size (d) | H | L | Weight (lbs.) | Type |
|---|---|---|---|---|---|---|---|---|---|---|
| 02-ETT-2202000 * | 1-1/4" x 1/2" | IPSxCTS | 11 | SBI 1-1/4" IPS x 1/2" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.83 | 0.63 | 4.13 | 1.73 | 0.64 | A |
| 02-ETT-2202068 * | 1-1/4" x 1/2" | IPSxIPS | 11 | SBI 1-1/4" IPS x 1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.83 | 0.84 | 4.13 | 1.73 | 0.66 | A |
| 02-ETT-2202069 * | 1-1/4" x 3/4" | IPSxCTS | 11 | SBI 1-1/4" IPS x 3/4" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.83 | 0.87 | 4.13 | 1.73 | 0.66 | A |
| 02-ETT-2202001 * | 1-1/4" x 3/4" | IPSxIPS | 11 | SBI 1-1/4" IPS x 3/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.83 | 1.05 | 4.13 | 1.73 | 0.66 | A |
| 02-ETT-2202070 * | 1-1/4" x 1" | IPSxCTS | 11 | SBI 1-1/4" IPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.83 | 1.13 | 4.13 | 1.73 | 0.68 | A |
| 02-ETT-2202002 | 1-1/4" x 1" | IPSxIPS | 11 | SBI 1-1/4" IPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.83 | 1.31 | 4.13 | 1.85 | 0.68 | A |
| 02-ETT-2202071 * | 1-1/2” x 1/2" | IPSxCTS | 11 | SBI 1-1/2" IPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.95 | 0.63 | 4.13 | 2.05 | 1.06 | A |
| 02-ETT-2202072 * | 1-1/2” x 1/2" | IPSxIPS | 11 | SBI 1-1/2" IPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.95 | 0.84 | 4.13 | 2.05 | 1.12 | A |
| 02-ETT-2202073 * | 1-1/2” x 3/4" | IPSxCTS | 11 | SBI 1-1/2" IPS x 1-3/4" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.95 | 0.87 | 4.13 | 2.05 | 1.15 | A |
| 02-ETT-2202074 * | 1-1/2” x 3/4" | IPSxIPS | 11 | SBI 1-1/2" IPS 3/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.95 | 1.05 | 4.13 | 2.13 | 1.26 | A |
| 02-ETT-2202004 * | 1-1/2” x 1" | IPSxCTS | 11 | SBI 1-1/2" IPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.95 | 1.13 | 4.13 | 2.13 | 1.28 | A |
| 02-ETT-2202005 | 1-1/2” x 1" | IPSxIPS | 11 | SBI 1-1/2" IPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.95 | 1.31 | 4.13 | 3.35 | 1.30 | A |
| 02-ETT-2202075 | 1-1/2” x 1-1/4" | IPSxIPS | 11 | SBI 1-1/2" IPS x 1-1/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 0.95 | 1.38 | 4.13 | 3.35 | 1.30 | A |
| 02-ETT-2202006 * | 2" x 1/2" | IPSxCTS | 11 | SBI 2" IPS x 1/2" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.19 | 0.63 | 4.13 | 2.05 | 1.19 | A |
| 02-ETT-2202007 | 2" x 1/2" | IPSxIPS | 11 | SBI 2" IPS x 1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.19 | 0.84 | 4.13 | 2.05 | 1.23 | A |
| 02-ETT-2202008 | 2" x 3/4" | IPSxCTS | 11 | SBI 2" IPS x 3/4" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.19 | 0.87 | 4.13 | 2.05 | 1.23 | A |
| 02-ETT-2202009 | 2" x 3/4" | IPSxIPS | 11 | SBI 2" IPS x 3/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.19 | 1.05 | 4.13 | 2.13 | 1.28 | A |
| 02-ETT-2202010 | 2" x 1" | IPSxCTS | 11 | SBI 2" IPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.19 | 1.13 | 4.13 | 2.13 | 1.28 | A |
| 02-ETT-2202011 | 2" x 1" | IPSxIPS | 11 | SBI 2" IPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.19 | 1.31 | 4.13 | 3.35 | 1.30 | A |
| 02-ETT-2202012 | 2" x 1-1/4" | IPSxIPS | 11 | SBI 2" IPS x 1-1/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.19 | 1.66 | 4.13 | 3.54 | 1.30 | A |
| 02-ETT-2202077 | 2" x 1-1/2" | IPSxIPS | 11 | SBI 2" IPS x 1-1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.19 | 1.90 | 7.87 | 4.53 | 2.43 | B |
| 02-ETT-2202013 | 2" x 2" | IPSxIPS | 11 | SBI 2" IPS x 2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.19 | 2.37 | 7.87 | 4.53 | 2.65 | B |
| 02-ETT-2202014 | 3" x 1/2" | IPSxCTS | 11 | SBI 3" IPS x 1/2" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.75 | 0.63 | 5.31 | 1.85 | 2.14 | A |
| 02-ETT-2202015 | 3" x 1/2" | IPSxIPS | 11 | SBI 3" IPS x 1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.75 | 0.84 | 5.31 | 1.85 | 2.16 | A |
| 02-ETT-2202016 | 3" x 3/4" | IPSxCTS | 11 | SBI 3" IPS x 3/4" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.75 | 0.87 | 5.31 | 1.85 | 2.16 | A |
| 02-ETT-2202017 | 3" x 3/4" | IPSxIPS | 11 | SBI 3" IPS x 3/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.75 | 1.05 | 5.31 | 2.05 | 2.18 | A |
| 02-ETT-2202018 | 3" x 1" | IPSxCTS | 11 | SBI 3" IPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.75 | 1.13 | 5.31 | 2.05 | 2.18 | A |
| 02-ETT-2202019 | 3" x 1" | IPSxIPS | 11 | SBI 3" IPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.75 | 1.31 | 5.31 | 2.52 | 2.21 | A |
| 02-ETT-2202020 | 3" x 1-1/4" | IPSxIPS | 11 | SBI 3" IPS x 1-1/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.75 | 1.66 | 5.31 | 3.50 | 2.23 | A |
| 02-ETT-2202079 | 3" x 1-1/2" | IPSxIPS | 11 | SBI 3" IPS x 1-1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.75 | 1.90 | 7.09 | 3.94 | 3.20 | C |
| 02-ETT-2202021 | 3" x 2" | IPSxIPS | 11 | SBI 3" IPS x 2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 1.75 | 2.37 | 7.09 | 4.33 | 3.29 | C |
| 02-ETT-2202022 | 4” x 1/2" | IPSxCTS | 11 | SBI 4" IPS x 1/2" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.25 | 0.63 | 5.31 | 1.89 | 2.25 | A |
| 02-ETT-2202023 | 4” x 1/2" | IPSxIPS | 11 | SBI 4" IPS x 1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.25 | 0.84 | 5.31 | 1.89 | 2.27 | A |
| 02-ETT-2202024 | 4” x 3/4" | IPSxCTS | 11 | SBI 4" IPS x 3/4" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.25 | 0.87 | 5.31 | 1.89 | 2.27 | A |
| 02-ETT-2202025 | 4” x 3/4" | IPSxIPS | 11 | SBI 4" IPS x 3/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.25 | 1.05 | 5.31 | 2.17 | 2.29 | A |
| 02-ETT-2202026 * | 4” x 1" | IPSxCTS | 11 | SBI 4" IPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.25 | 1.13 | 5.31 | 2.17 | 2.34 | A |
| 02-ETT-2202027 | 4” x 1" | IPSxIPS | 11 | SBI 4" IPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.25 | 1.31 | 5.31 | 2.68 | 2.36 | A |
| 02-ETT-2202028 | 4” x 1-1/4" | IPSxIPS | 11 | SBI 4" IPS x 1-1/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.25 | 1.66 | 5.31 | 2.76 | 2.38 | A |
| 02-ETT-2202029 | 4” x 1-1/2" | IPSxIPS | 11 | SBI 4" IPS x 1-1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.25 | 1.90 | 7.09 | 2.95 | 2.38 | A |
| 02-ETT-2202030 | 4” x 2" | IPSxIPS | 11 | SBI 4" IPS x 2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.25 | 2.37 | 7.09 | 2.95 | 3.31 | A |
| 02-ETT-2202036 | 6” x 1/2" | IPSxCTS | 11 | SBI 6" IPS x 1/2" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.31 | 0.63 | 5.31 | 2.01 | 1.72 | C |
| 02-ETT-2202037 | 6” x 1/2" | IPSxIPS | 11 | SBI 6" IPS x 1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.31 | 0.84 | 5.31 | 2.01 | 1.72 | C |
| 02-ETT-2202038 | 6” x 3/4" | IPSxCTS | 11 | SBI 6" IPS x 3/4" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.31 | 0.87 | 5.31 | 2.01 | 1.72 | C |
| 02-ETT-2202039 | 6” x 3/4" | IPSxIPS | 11 | SBI 6" IPS x 3/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.31 | 1.05 | 5.31 | 1.89 | 1.74 | C |
| 02-ETT-2202040 | 6” x 1" | IPSxCTS | 11 | SBI 6" IPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.31 | 1.13 | 5.31 | 1.89 | 1.74 | C |
| 02-ETT-2202041 | 6” x 1" | IPSxIPS | 11 | SBI 6" IPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.31 | 1.31 | 5.31 | 3.27 | 1.76 | C |
| 02-ETT-2202043 | 6” x 1-1/4" | IPSxIPS | 11 | SBI 6" IPS x 1-1/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.31 | 1.66 | 5.31 | 3.50 | 1.79 | C |
| 02-ETT-2202091 | 6” x 1-1/2" | IPSxIPS | 11 | SBI 6" IPS x 1-1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.31 | 1.90 | 7.09 | 4.06 | 2.87 | C |
| 02-ETT-2202045 | 6” x 2" | IPSxIPS | 11 | SBI 6" IPS x 2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.31 | 2.37 | 7.09 | 4.33 | 2.87 | C |
| 02-ETT-2202052 | 8” x 1/2" | IPSxCTS | 11 | SBI 8" IPS x 1/2" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.31 | 0.63 | 5.31 | 2.01 | 1.72 | C |
| 02-ETT-2202053 | 8” x 1/2" | IPSxIPS | 11 | SBI 8" IPS x 1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.31 | 0.84 | 5.31 | 2.01 | 1.72 | C |
| 02-ETT-2202054 | 8” x 3/4" | IPSxCTS | 11 | SBI 8" IPS x 3/4" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.31 | 0.87 | 5.31 | 2.01 | 1.74 | C |
| 02-ETT-2202055 | 8” x 3/4" | IPSxIPS | 11 | SBI 8" IPS x 3/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.31 | 1.05 | 5.31 | 1.89 | 1.76 | C |
| 02-ETT-2202056 | 8” x 1" | IPSxCTS | 11 | SBI 8" IPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.31 | 1.13 | 5.31 | 1.89 | 1.76 | C |
| 02-ETT-2202057 | 8” x 1" | IPSxIPS | 11 | SBI 8" IPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.31 | 1.31 | 5.31 | 3.27 | 1.79 | C |
| 02-ETT-2202065 | 8” x 1-1/4" | IPSxIPS | 11 | SBI 8" IPS x 1-1/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.31 | 1.66 | 5.31 | 3.50 | 1.81 | C |
| 02-ETT-2202103 | 8” x 1-1/2" | IPSxIPS | 11 | SBI 8" IPS x 1-1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.31 | 1.90 | 7.09 | 3.39 | 2.76 | C |
| 02-ETT-2202058 | 8” x 2" | IPSxIPS | 11 | SBI 8" IPS x 2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.31 | 2.37 | 7.09 | 4.45 | 2.76 | C |
| 02-ETT-2202104 * | 10” x 1/2" | IPSxCTS | 11 | SBI 10" IPS x 1/2" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.38 | 0.63 | 5.31 | 2.01 | 1.72 | D |
| 02-ETT-2202105 * | 10” x 1/2" | IPSxIPS | 11 | SBI 10" IPS x 1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.38 | 0.84 | 5.31 | 2.01 | 1.72 | D |
| 02-ETT-2202106 * | 10” x 3/4" | IPSxCTS | 11 | SBI 10" IPS x 3/4" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.38 | 0.87 | 5.31 | 2.01 | 1.72 | D |
| 02-ETT-2202107 * | 10” x 3/4" | IPSxIPS | 11 | SBI 10" IPS x 3/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.38 | 1.05 | 5.31 | 1.89 | 1.74 | D |
| 02-ETT-2202108 * | 10” x 1" | IPSxCTS | 11 | SBI 10" IPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.38 | 1.13 | 5.31 | 1.89 | 1.74 | D |
| 02-ETT-2202109 * | 10” x 1" | IPSxIPS | 11 | SBI 10" IPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.38 | 1.31 | 5.31 | 3.27 | 1.76 | D |
| 02-ETT-2202110 * | 10” x 1-1/4" | IPSxIPS | 11 | SBI 10" IPS x 1-1/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.38 | 1.66 | 5.31 | 3.50 | 1.79 | D |
| 02-ETT-2202112 * | 10” x 1-1/2" | IPSxIPS | 11 | SBI 10" IPS x 1-1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.38 | 1.90 | 7.09 | 3.39 | 2.76 | D |
| 02-ETT-2202063 * | 10” x 2" | IPSxIPS | 11 | SBI 10" IPS x 2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.38 | 2.37 | 7.09 | 4.45 | 2.76 | D |
| 02-ETT-2202122 * | 4” x 1/2" | DIPSxCTS | 11 | SBI 4" DIPS x 1/2" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.40 | 0.63 | 5.31 | 1.89 | 2.27 | A |
| 02-ETT-2202123 * | 4” x 1/2" | DIPSxIPS | 11 | SBI 4" DIPS x 1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.40 | 0.84 | 5.31 | 1.89 | 2.29 | A |
| 02-ETT-2202031 * | 4” x 3/4" | DIPSxCTS | 11 | SBI 4" DIPS x 3/4" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.40 | 0.87 | 5.31 | 1.89 | 2.29 | A |
| 02-ETT-2202032 | 4” x 3/4" | DIPSxIPS | 11 | SBI 4" DIPS x 3/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.40 | 1.05 | 5.31 | 2.17 | 2.32 | A |
| 02-ETT-2202033 | 4” x 1" | DIPSxCTS | 11 | SBI 4" DIPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.40 | 1.13 | 5.31 | 2.17 | 2.32 | A |
| 02-ETT-2202034 | 4” x 1" | DIPSxIPS | 11 | SBI 4" DIPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.40 | 1.31 | 5.31 | 2.68 | 2.36 | A |
| 02-ETT-2202124 * | 4” x 1-1/4" | DIPSxIPS | 11 | SBI 4" DIPS x 1-1/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.40 | 1.66 | 5.31 | 2.76 | 2.38 | A |
| 02-ETT-2202126 | 4” x 1-1/2" | DIPSxIPS | 11 | SBI 4" DIPS x 1-1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.40 | 1.90 | 7.09 | 2.95 | 3.31 | C |
| 02-ETT-2202127 | 4” x 2" | DIPSxIPS | 11 | SBI 4" DIPS x 2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 2.40 | 2.37 | 7.09 | 2.95 | 3.31 | C |
| 02-ETT-2202046 | 6” x 1/2" | DIPSxCTS | 11 | SBI 6" DIPS x 1/2" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.45 | 0.63 | 5.31 | 2.01 | 1.72 | C |
| 02-ETT-2202128 * | 6” x 1/2" | DIPSxIPS | 11 | SBI 6" DIPS x 1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.45 | 0.84 | 5.31 | 2.01 | 1.72 | C |
| 02-ETT-2202047 | 6” x 3/4" | DIPSxCTS | 11 | SBI 6" DIPS x 3/4" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.45 | 0.87 | 5.31 | 2.01 | 1.72 | C |
| 02-ETT-2202048 | 6” x 3/4" | DIPSxIPS | 11 | SBI 6" DIPS x 3/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.45 | 1.05 | 5.31 | 1.89 | 1.74 | C |
| 02-ETT-2202049 | 6” x 1" | DIPSxCTS | 11 | SBI 6" DIPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.45 | 1.13 | 5.31 | 1.89 | 1.76 | C |
| 02-ETT-2202050 | 6” x 1" | DIPSxIPS | 11 | SBI 6" DIPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.45 | 1.31 | 5.31 | 3.27 | 1.76 | C |
| 02-ETT-2202129 * | 6” x 1-1/4" | DIPSxIPS | 11 | SBI 6" DIPS x 1-1/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.45 | 1.66 | 5.31 | 3.50 | 1.79 | C |
| 02-ETT-2202131 | 6” x 1-1/2" | DIPSxIPS | 11 | SBI 6" DIPS x 1-1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.45 | 1.90 | 7.09 | 3.39 | 2.87 | C |
| 02-ETT-2202051 | 6” x 2" | DIPSxIPS | 11 | SBI 6" DIPS x 2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 3.45 | 2.37 | 7.09 | 3.39 | 2.87 | C |
| 02-ETT-2202132 * | 8” x 1/2" | DIPSxCTS | 11 | SBI 8" DIPS x 1/2" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.53 | 0.63 | 5.31 | 2.01 | 1.72 | C |
| 02-ETT-2202133 * | 8” x 1/2" | DIPSxIPS | 11 | SBI 8" DIPS x 1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.53 | 0.84 | 5.31 | 2.01 | 1.74 | C |
| 02-ETT-2202059 | 8” x 3/4" | DIPSxCTS | 11 | SBI 8" DIPS x 3/4" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.53 | 0.87 | 5.31 | 2.01 | 1.74 | C |
| 02-ETT-2202060 | 8” x 3/4" | DIPSxIPS | 11 | SBI 8" DIPS x 3/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.53 | 1.05 | 5.31 | 1.89 | 1.74 | C |
| 02-ETT-2202061 | 8” x 1" | DIPSxCTS | 11 | SBI 8" DIPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.53 | 1.13 | 5.31 | 1.89 | 1.76 | C |
| 02-ETT-2202134 | 8” x 1" | DIPSxIPS | 11 | SBI 8" DIPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.53 | 1.31 | 5.31 | 3.27 | 1.79 | C |
| 02-ETT-2202135 | 8” x 1-1/4" | DIPSxIPS | 11 | SBI 8" DIPS x 1-1/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.53 | 1.66 | 5.31 | 3.50 | 1.81 | C |
| 02-ETT-2202137 | 8” x 1-1/2" | DIPSxIPS | 11 | SBI 8" DIPS x 1-1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.53 | 1.90 | 7.09 | 3.39 | 2.76 | C |
| 02-ETT-2202138 | 8” x 2" | DIPSxIPS | 11 | SBI 8" DIPS x 2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 4.53 | 2.37 | 7.09 | 4.45 | 2.76 | C |
| 02-ETT-2202139 * | 10” x 1/2" | DIPSxCTS | 11 | SBI 10" DIPS x 1/2" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.55 | 0.63 | 5.31 | 2.01 | 1.72 | D |
| 02-ETT-2202140 * | 10” x 1/2" | DIPSxIPS | 11 | SBI 10" DIPS x 1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.55 | 0.84 | 5.31 | 2.01 | 1.72 | D |
| 02-ETT-2202141 * | 10” x 3/4" | DIPSxCTS | 11 | SBI 10" DIPS x 3/4" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.55 | 0.87 | 5.31 | 2.01 | 1.74 | D |
| 02-ETT-2202142 * | 10” x 3/4" | DIPSxIPS | 11 | SBI 10" DIPS x 3/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.55 | 1.05 | 5.31 | 1.89 | 1.74 | D |
| 02-ETT-2202143 * | 10” x 1" | DIPSxCTS | 11 | SBI 10" DIPS x 1" CTS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.55 | 1.13 | 5.31 | 1.89 | 1.74 | D |
| 02-ETT-2202144 * | 10” x 1" | DIPSxIPS | 11 | SBI 10" DIPS x 1" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.55 | 1.31 | 5.31 | 3.27 | 1.76 | D |
| 02-ETT-2202145 * | 10” x 1-1/4" | DIPSxIPS | 11 | SBI 10" DIPS x 1-1/4" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.55 | 1.66 | 5.31 | 3.50 | 1.81 | D |
| 02-ETT-2202147 * | 10” x 1-1/2" | DIPSxIPS | 11 | SBI 10" DIPS x 1-1/2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.55 | 1.90 | 7.09 | 3.39 | 2.76 | D |
| 02-ETT-2202148 * | 10” x 2" | DIPSxIPS | 11 | SBI 10" DIPS x 2" IPS, EF Tapping Tee, SDR11, PE100/4710, 240psi water, 125psi gas, NSF 61 | 5.55 | 2.37 | 7.09 | 4.45 | 2.76 | D |
* Special Order Items, please contact sales
